A few pics of my chopped Explorer 2's

Dan(NM)

Well-known member

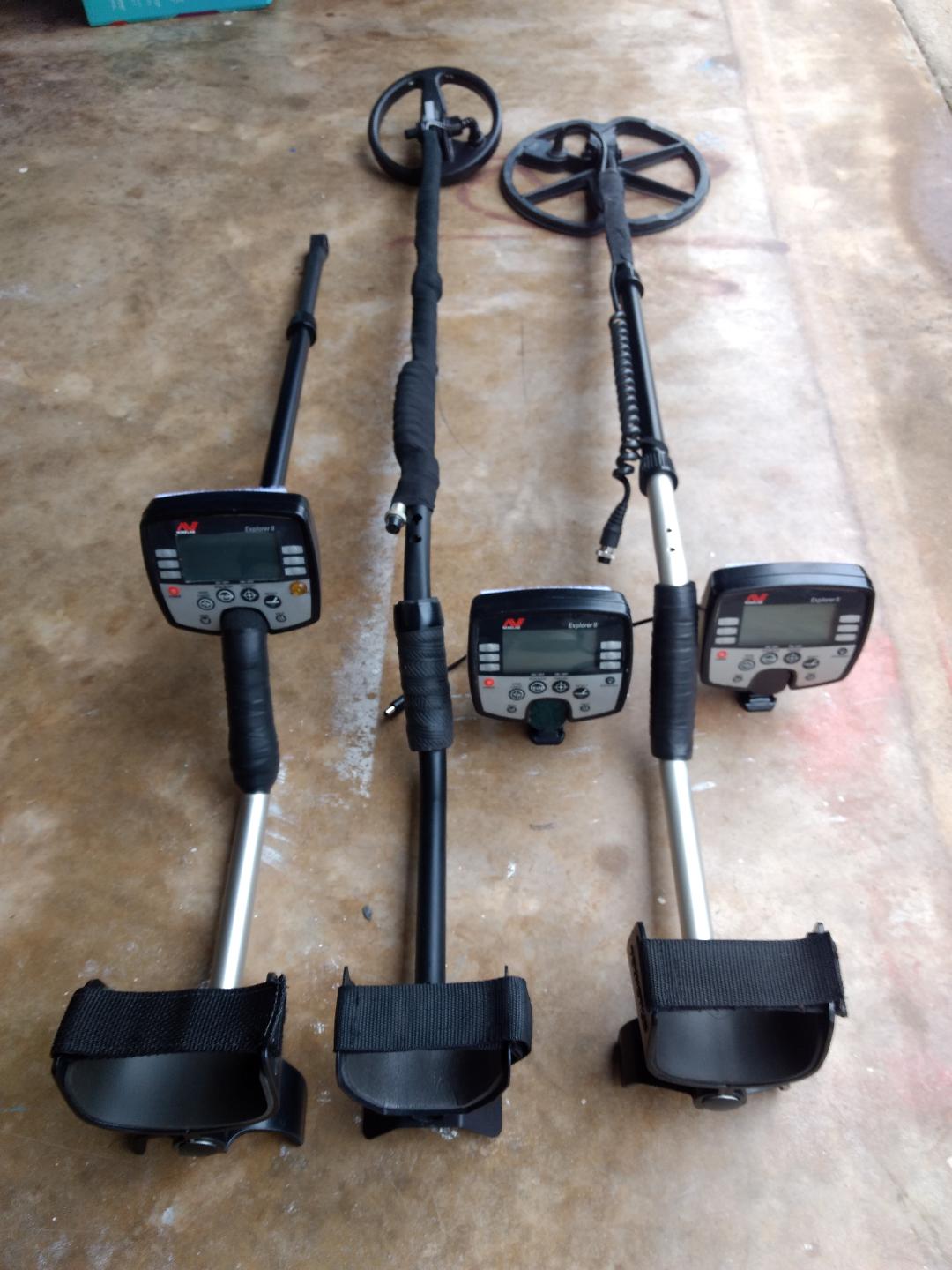

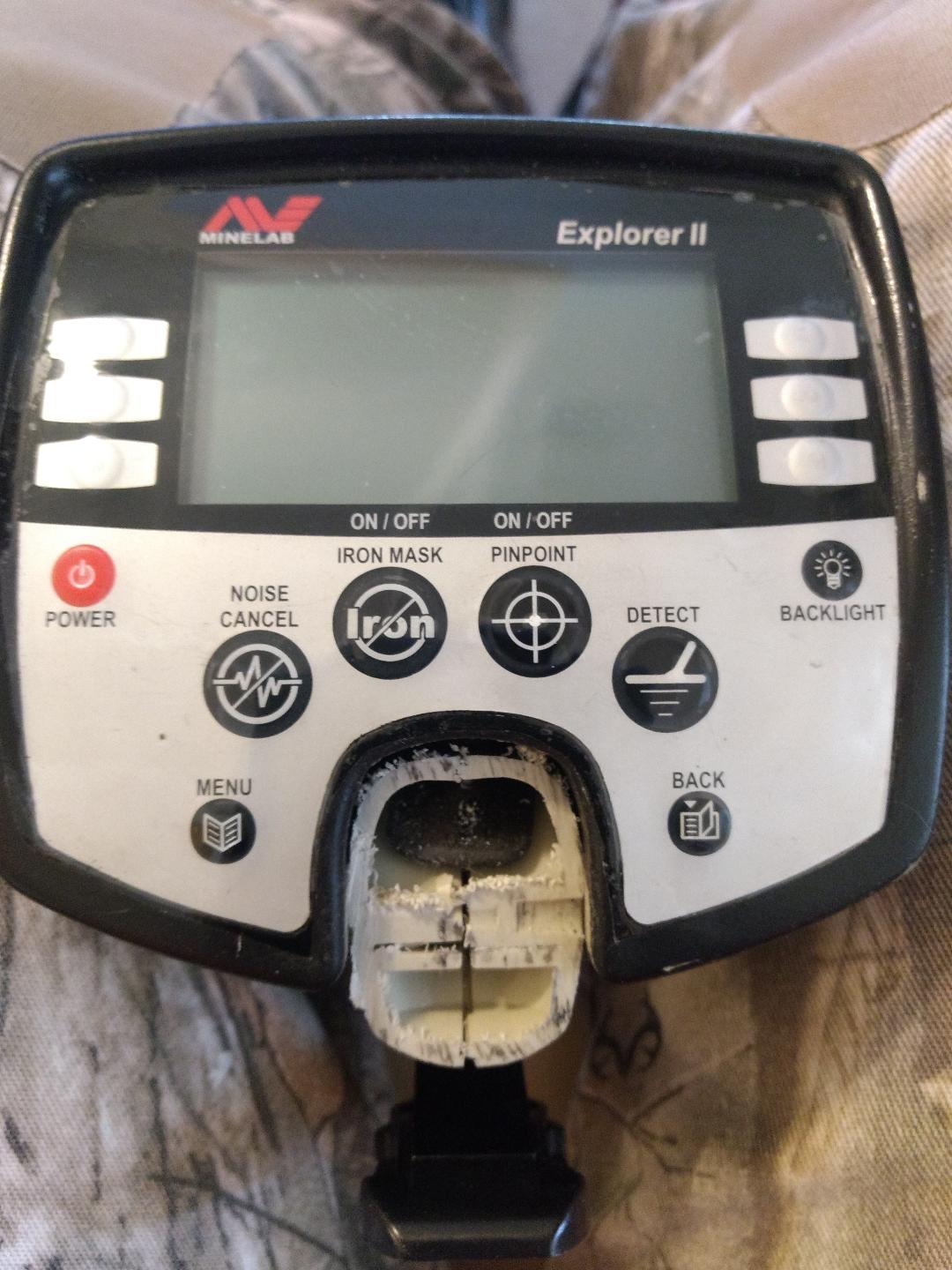

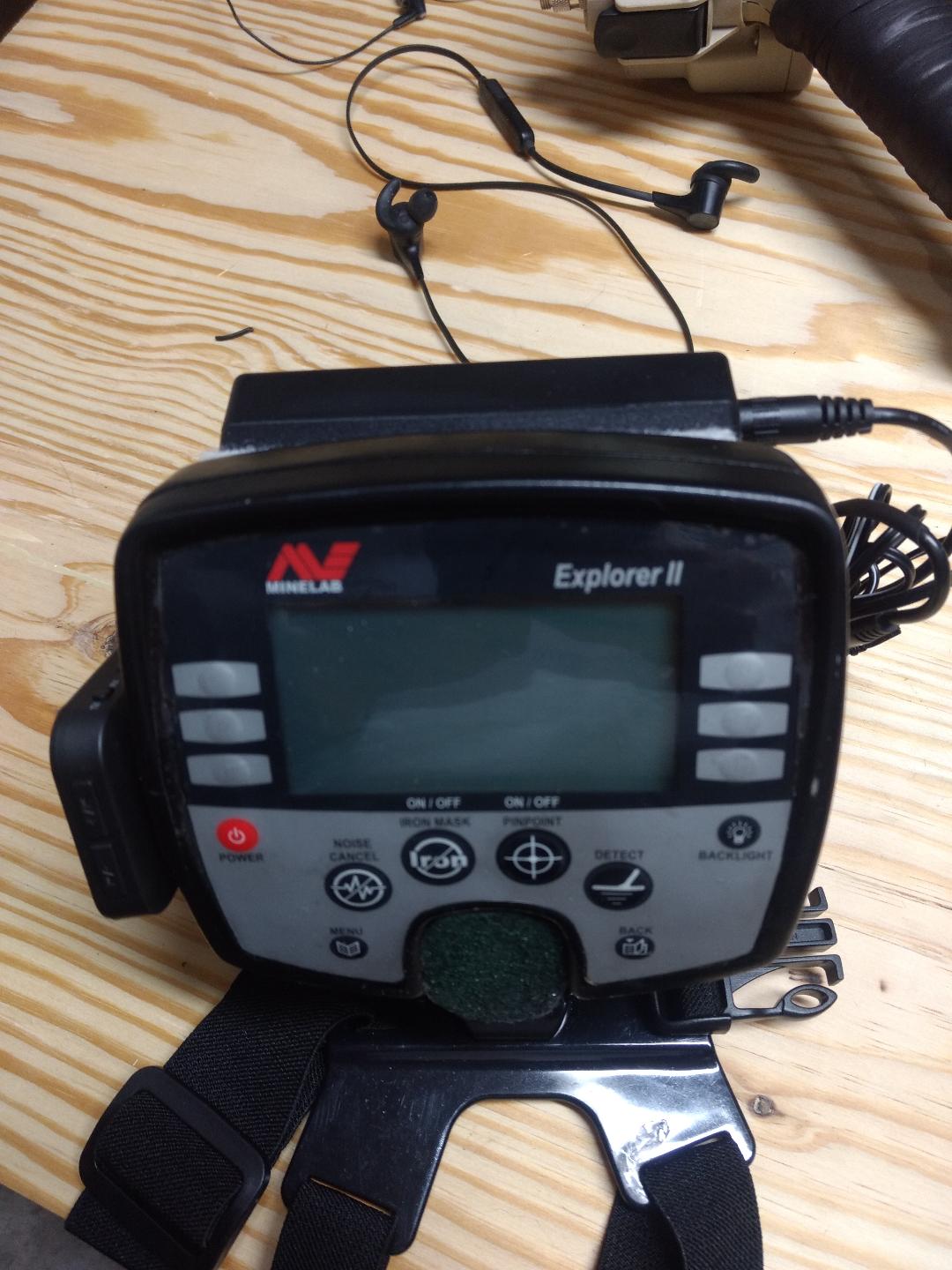

Finished up the conversion of several Explorer 2's that I had while my ankle was broken. I took it once since it was completed and this set-up is such a pleasure to swing. With the 13" coil mounted on the s-rod, it weighs a little over 2 1/2lbs :) Instead of prying the control housing off the handle, I took the faceplate off and cut it as close to the housing as possible.

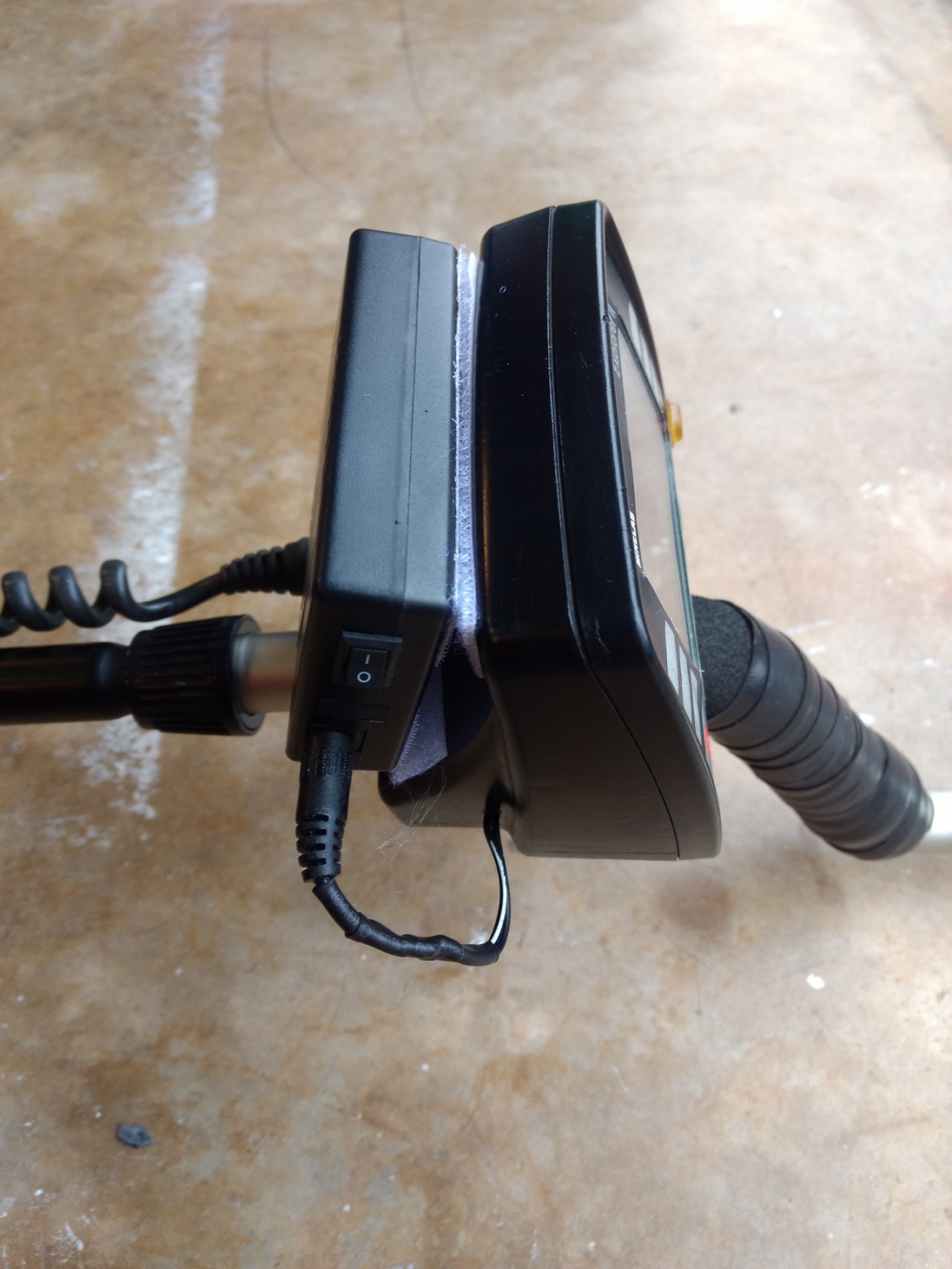

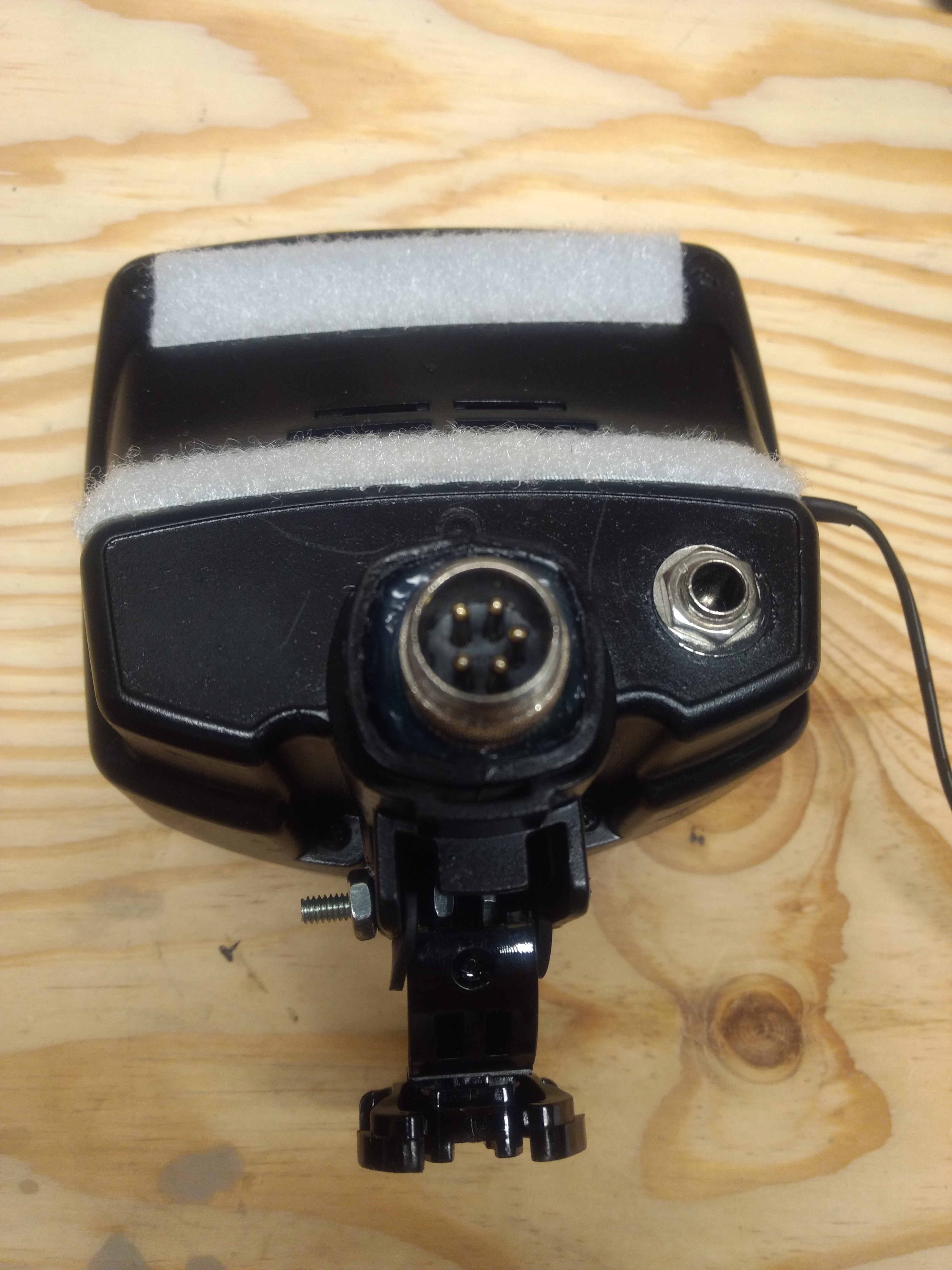

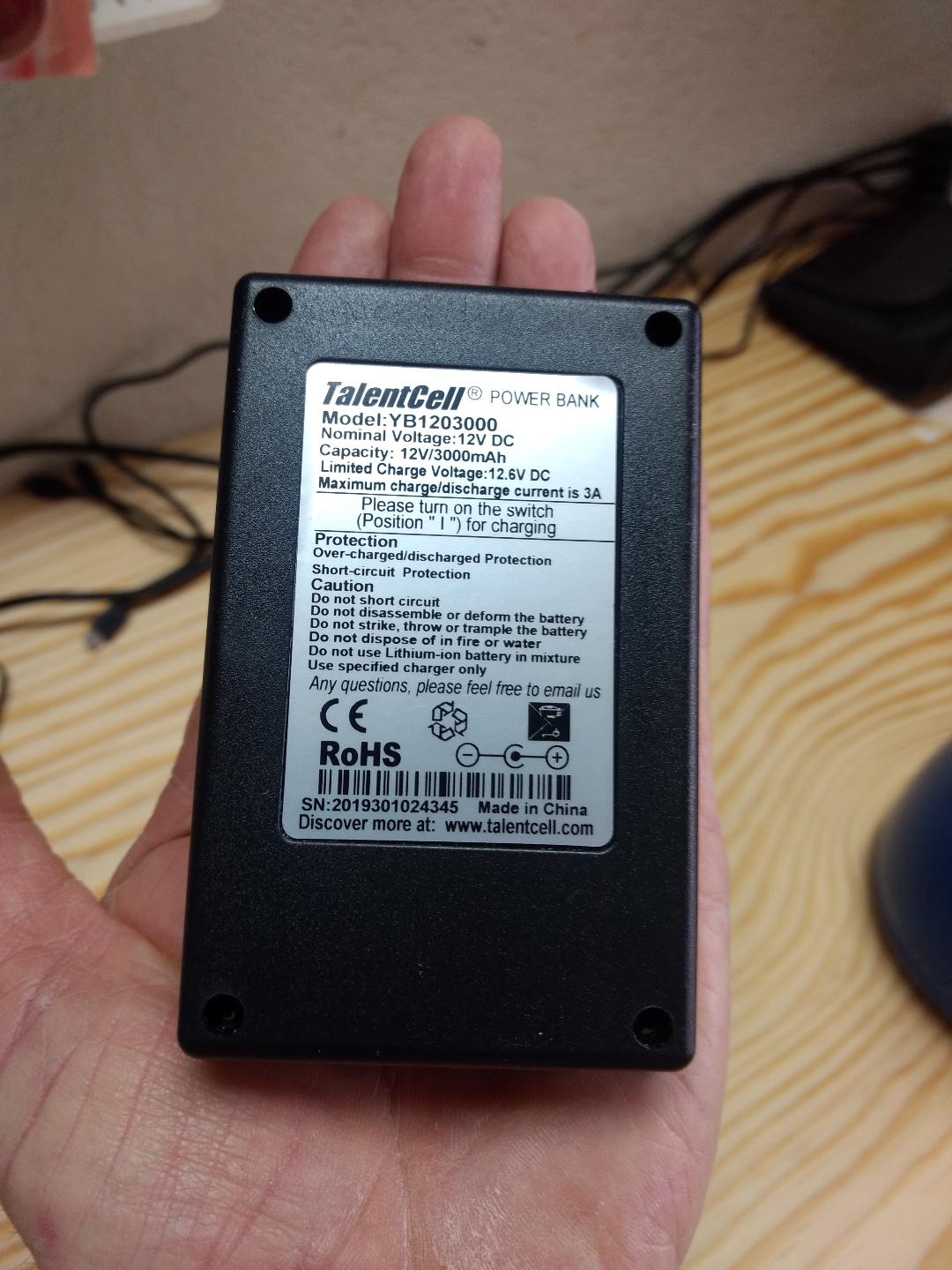

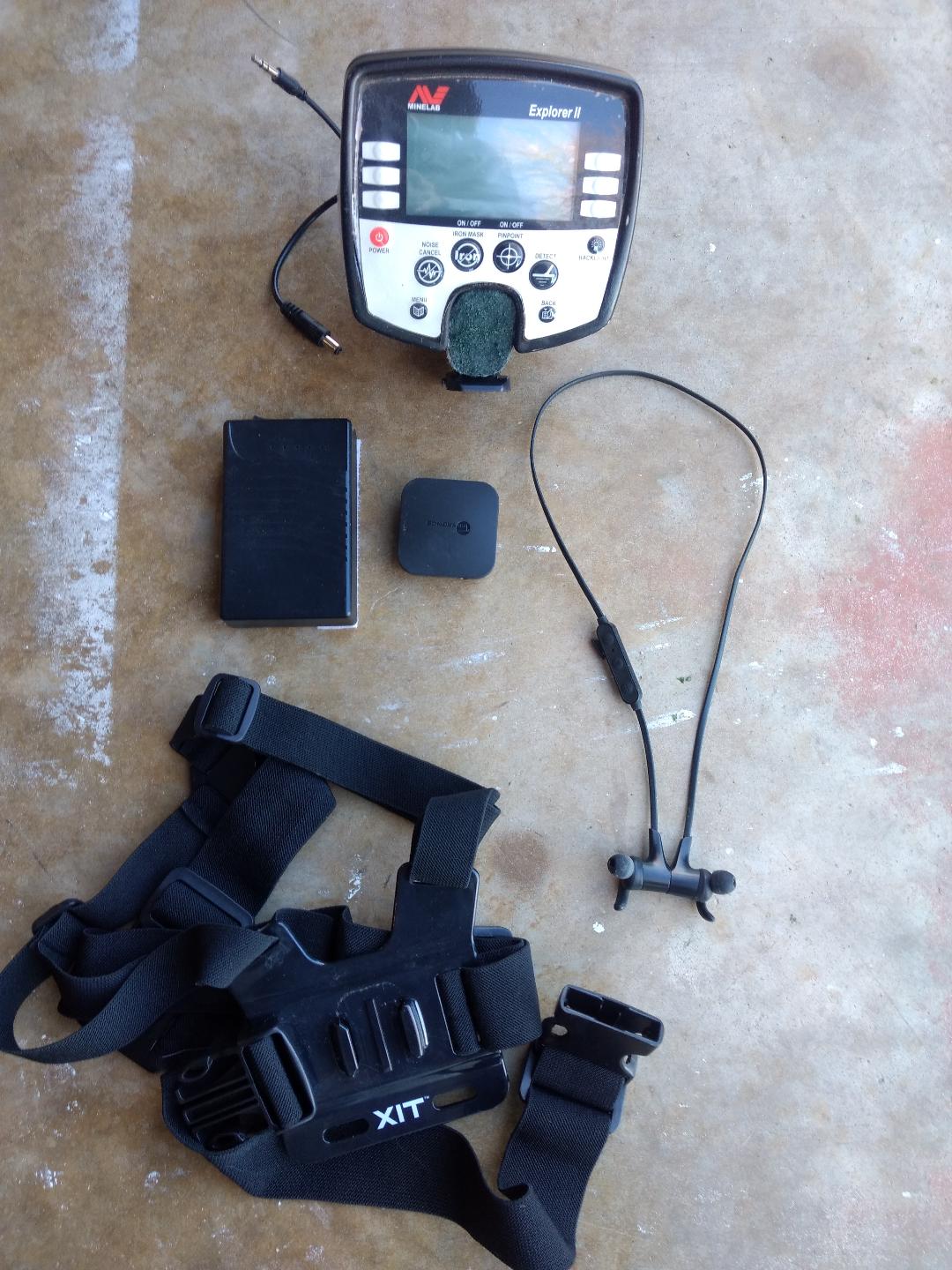

I bought some 1/4" audio jacks and mounted those to the back of the housing. I disabled the speaker, since I use a wireless transmitter with wireless earbuds, both the TR and the earbuds are Low latency and APTX , no lag perceived. I'm using a 12v. 3000 mah power bank to run the units, the only drawback is, the power bank has an on/off switch, when off, it kills any power to the Explorer and this causes a reset. I bought a AA battery pack for a back up in case my power bank dies in the field.
I've been jewelry hunting so far this year, but, when I start turf hunting the EX 2 will be my go to machine.


Attachments

  • ex1.jpg
    168.4 KB · Views: 219
  • IMG_20200124_072058893.jpg
    4.2 MB · Views: 276
  • IMG_20200124_072042273.jpg
    4.6 MB · Views: 255
  • xs3.jpg
    149.7 KB · Views: 216
  • IMG_20191220_121609481.jpg
    393 KB · Views: 218
  • b4.jpg
    173.8 KB · Views: 205
  • lt13.jpg
    220.4 KB · Views: 212
  • IMG_20200124_072318239.jpg
    1.5 MB · Views: 217
  • IMG_20200124_072308733_BURST001.jpg
    1.4 MB · Views: 234
  • b1.jpg
    169.3 KB · Views: 213
Finished up the conversion of several Explorer 2's that I had while my ankle was broken. I took it once since it was completed and this set-up is such a pleasure to swing. With the 13" coil mounted on the s-rod, it weighs a little over 2 1/2lbs :) Instead of prying the control housing off the handle, I took the faceplate off and cut it as close to the housing as possible.
I bought some 1/4" audio jacks and mounted those to the back of the housing. I disabled the speaker, since I use a wireless transmitter with wireless earbuds, both the TR and the earbuds are Low latency and APTX , no lag perceived. I'm using a 12v. 3000 mah power bank to run the units, the only drawback is, the power bank has an on/off switch, when off, it kills any power to the Explorer and this causes a reset. I bought a AA battery pack for a back up in case my power bank dies in the field.
I've been jewelry hunting so far this year, but, when I start turf hunting the EX 2 will be my go to machine.

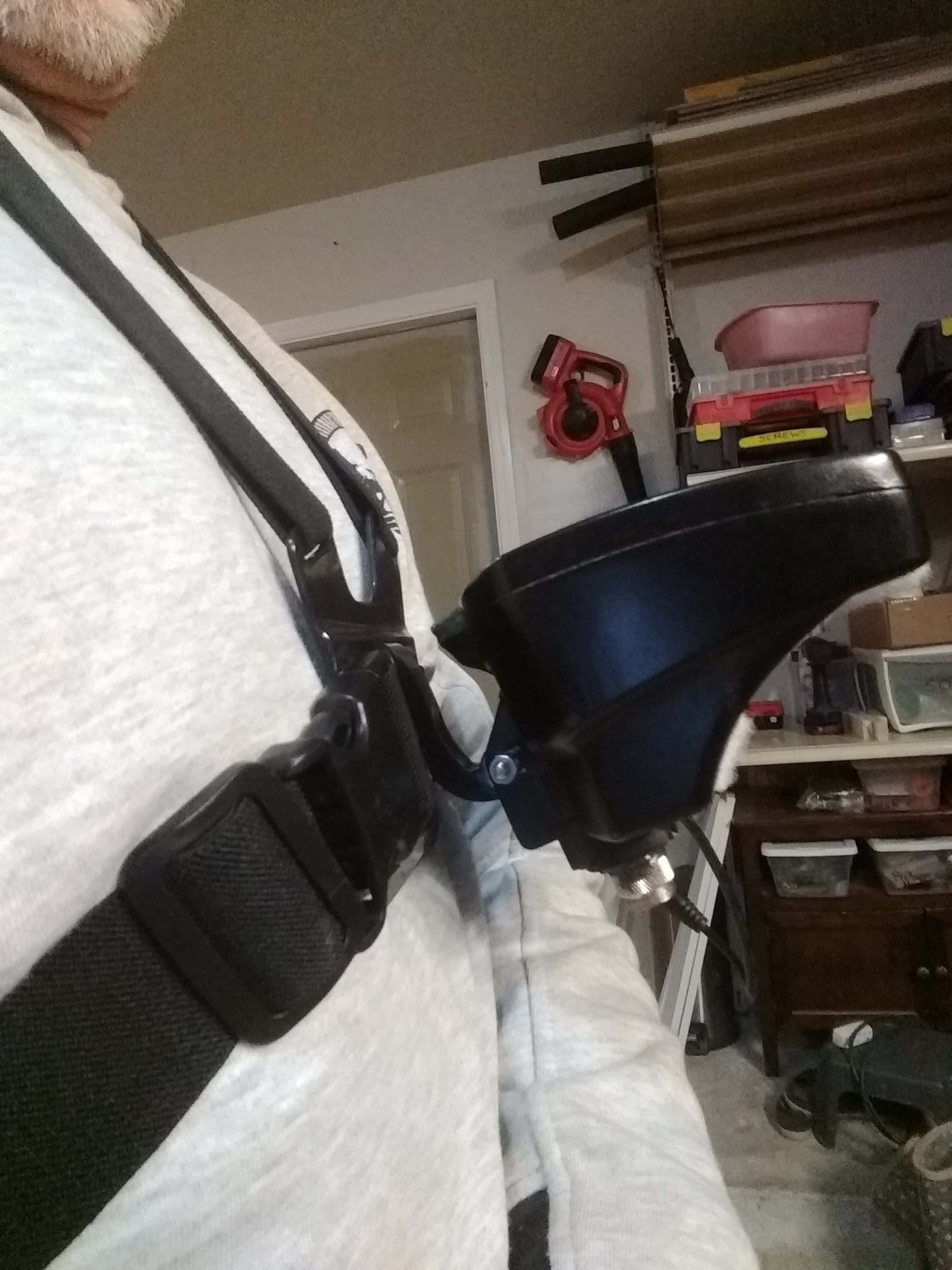

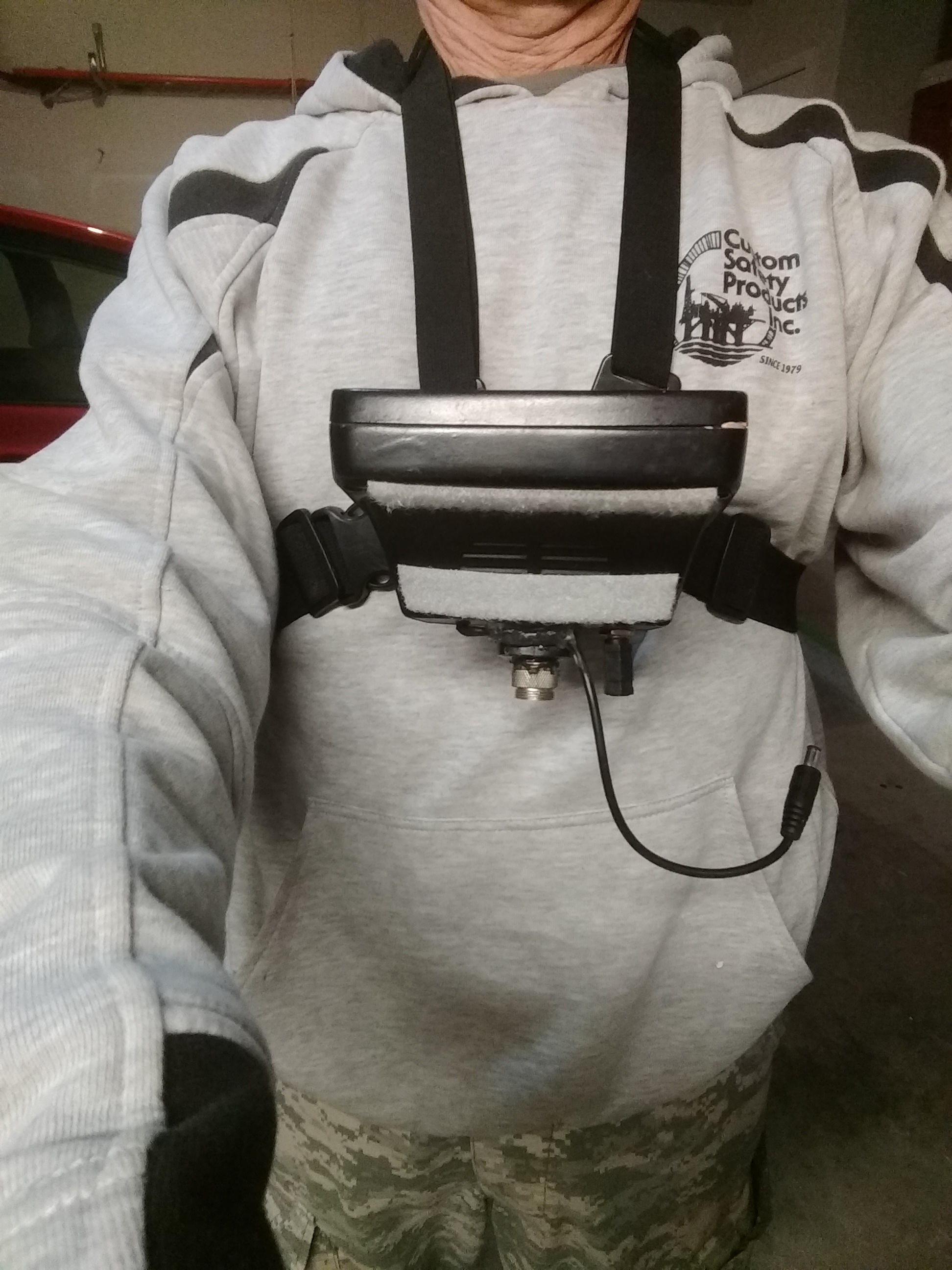

What a great idea to chest mount the Explorer! Also the custom battery pack is brilliant. Kudos
