Shovel modification

Draco

Well-known member
Today it was time to modify one of my excavation shovels. It was a bit big and heavy and I couldn't fit it in my backpack. I have trimmed it to my liking and used a handlebar from a folding skateboard. Now I simply take it apart and put it in my backpack until use. I can also use it as a cane in slippery mountain places. It is only 15 '' folded. Extended maximum 43.3 ''


Attachments

  • 20220101_192631.jpg
    1.8 MB · Views: 130
  • 20220101_192657.jpg
    1.9 MB · Views: 132
  • 20220101_192712.jpg
    1.8 MB · Views: 128

Draco

Well-known member
Measure the inside of the blade and cut it so that it will fit with the inner shank of the skateboard. Then I made four holes of about 8mm on four sides of the shovel that I point out with the pencil. I put some solder points and passed the grinder. It has been perfectly fitted.
Now you just need to fill the hole with epoxy and paint.


Attachments

  • 20220101_213647.jpg
    1.6 MB · Views: 64
  • 20220101_213237.jpg
    1.7 MB · Views: 68
  • 20220101_213607.jpg
    1.8 MB · Views: 61
  • 20220101_213600.jpg
    1.7 MB · Views: 63
  • 20220101_213459.jpg
    1.8 MB · Views: 65
  • 20220101_213144.jpg
    1.6 MB · Views: 69
  • 20220101_213754.jpg
    2.3 MB · Views: 68
  • 20220101_213208.jpg
    1.7 MB · Views: 79

Draco

Well-known member



Any other similar can serve

Last edited:

Draco

Well-known member
Finished and painted


Attachments

  • 20220102_222615.jpg
    1.9 MB · Views: 66

Draco

Well-known member
looks very good, great work.
If you can make your own, I'd like to see a few photos. I'd be happy to hear that you found this information helpful.
Greetings


Draco

Well-known member
Today I have time and I made another folding shovel. Disassembled it measures 16.5" and extended, it can reach up to 40". Hope you like.


Attachments

  • 20220507_214415.jpg
    1.6 MB · Views: 14
  • 20220507_214754.jpg
    1.7 MB · Views: 14
  • 20220507_214715.jpg
    1.6 MB · Views: 14

MarkCZ

Well-known member
I've been working on a carry option for the longer handled detecting shovel here is an un-field tested concept I'm working on to help carry the longer handle detecting.

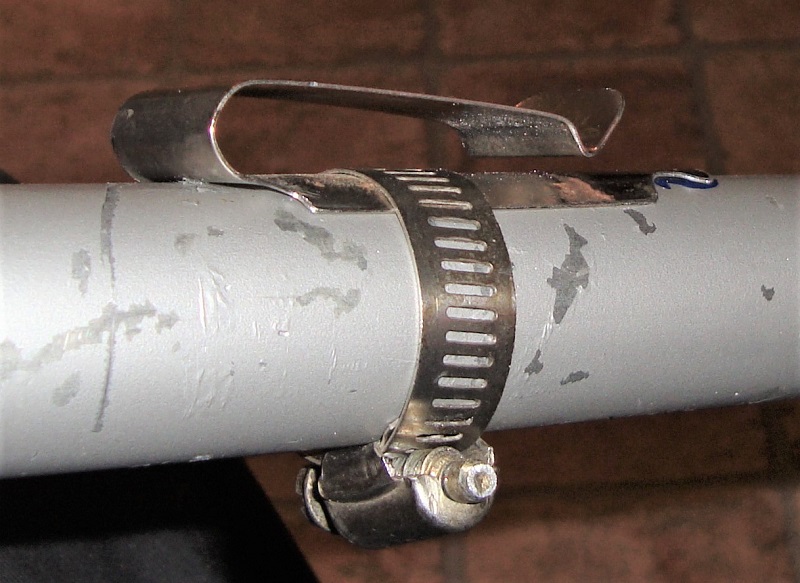

I found this old sturdy cellphone carry case, I removed the belt clip, I grinded two small notches on the side near the top of the clip to allow the edges to be folded just a bit to fit the roundness of the tube.
Then I clamped it to the handle for testing purposes, if it works well then I can work out the details of attaching it some other method, but if there is some location problems in the field then its adjustable.
I wanted to position the hanger in a way that it will hang blade downward and not want to flip around and be as high as reasonable off the ground.








Last edited:

Spider-F5

Active member
Great idea Draco. (y) Thanks for sharing.
