Sovereign Gt coil connector wiring diagram.

Sovereignhed

New member
Does anyone have a wiring diagram for both the coil side to control box side of the colour codes.I must replace the male and female connectors.
The wiring is a bit confusing,colours dont match up on my setup.Any diagrams would that work would be invaluable.
Thank you ,LES

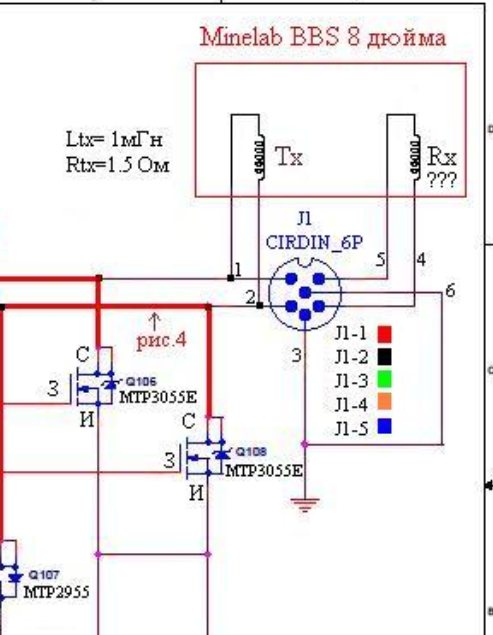

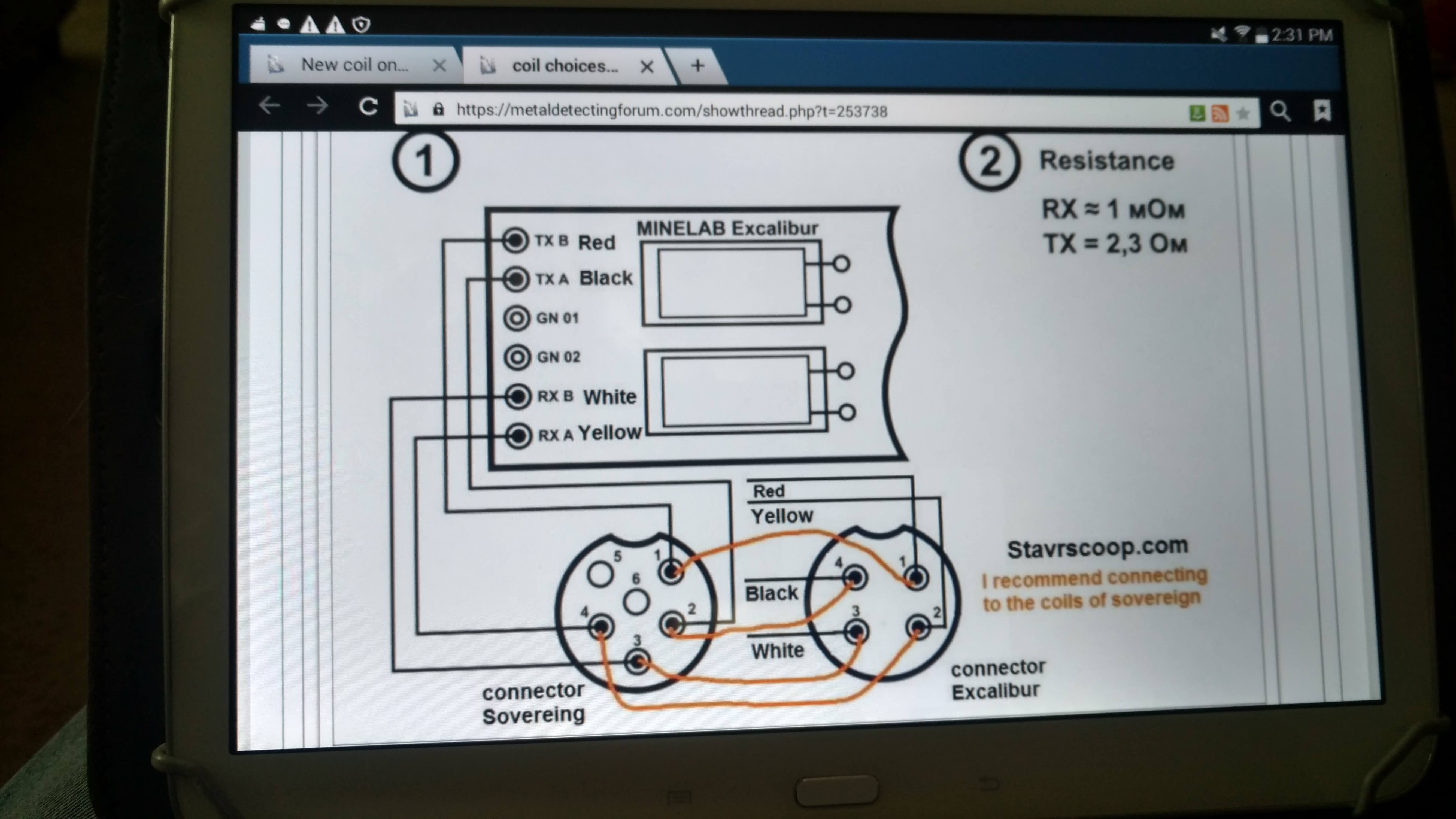

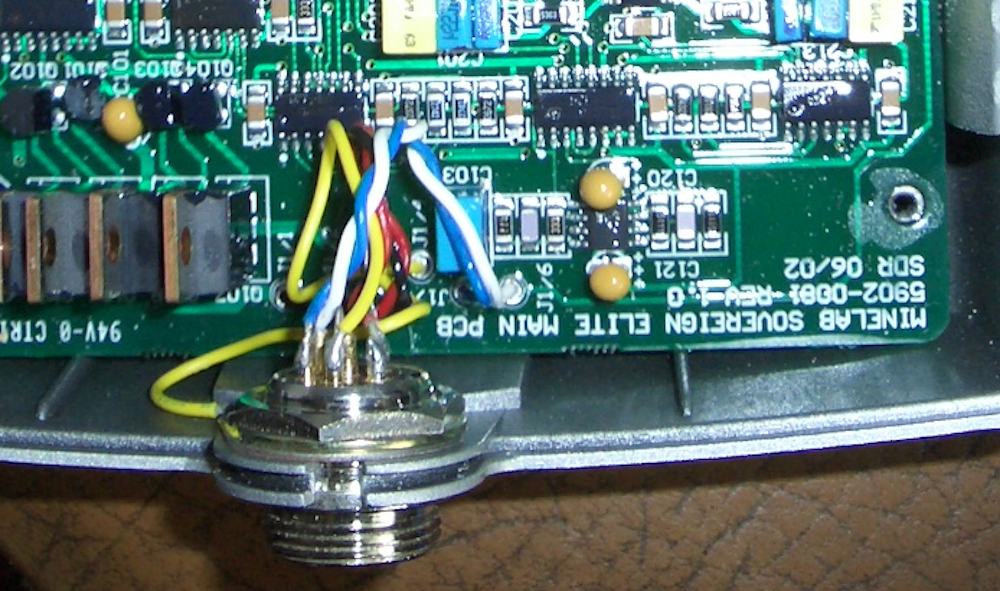

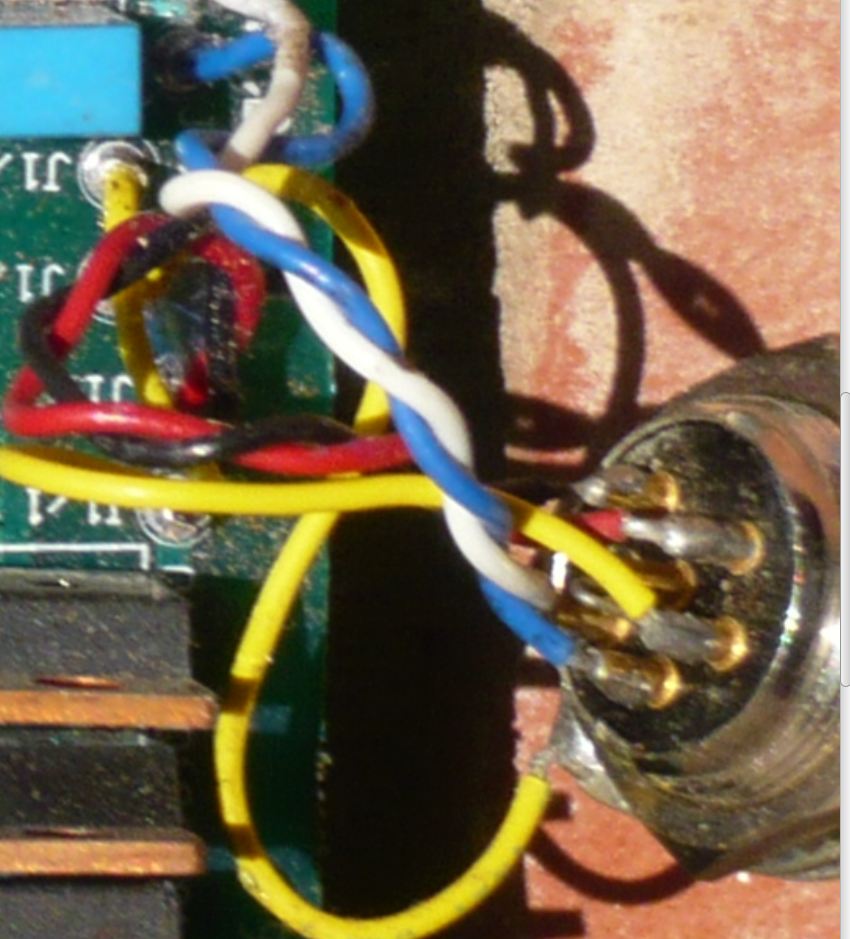

hope this helps...

Thank you for your help.I have a Sovereing GT, and i am replaceing the 6 pin male/female connector.I bought a 5 pin male/female connector and wired it up like the diagram,but it does not work.
There is a blue wire that was on the center pin ,and I did not connect it on,as it is not used that I can make out.I will keep searching for more information.
I live in Australia.,in Queensland.Tropical state.Its cooling down now.Down south it will snow soon.
Regards LES

Thank you so kindly.I will try to examine this and apply it to my cable plugs.
I live in Australia.I have had my sovereign since new in about 2008 or before.I have had great success with it.
But the wiring plug needs replaceing.and some cables.
Regards LES.
