Audio gain.

Ronstar

Well-known member

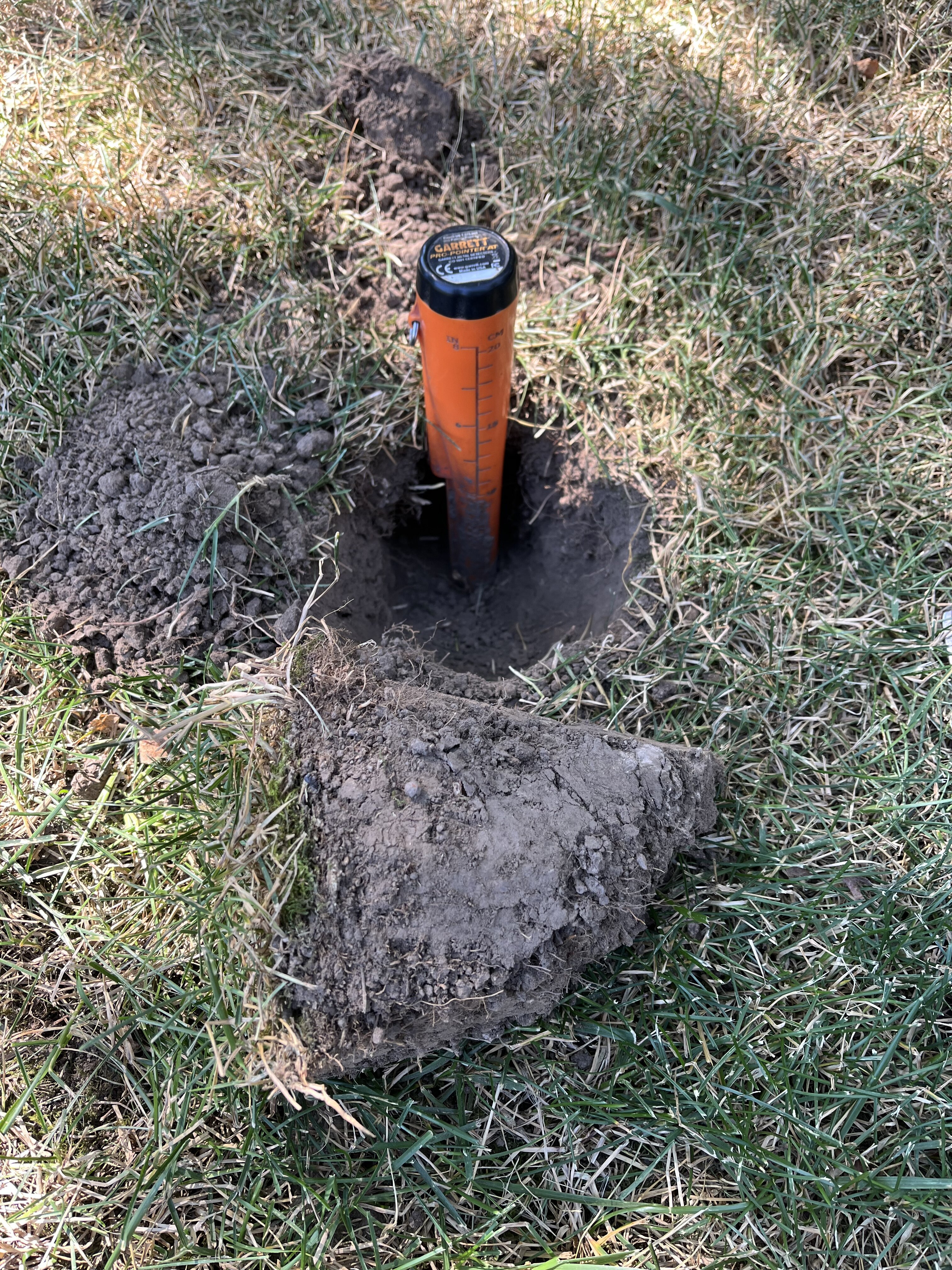

Just kind of an interesting moment. I sat out in my side yard and decided to go back into all the settings etc. Set the audio gain up from default and went to look for anything “iffy” of “faint”. Got a two way 19 VDI and deep but no ferro reading, this works!!!

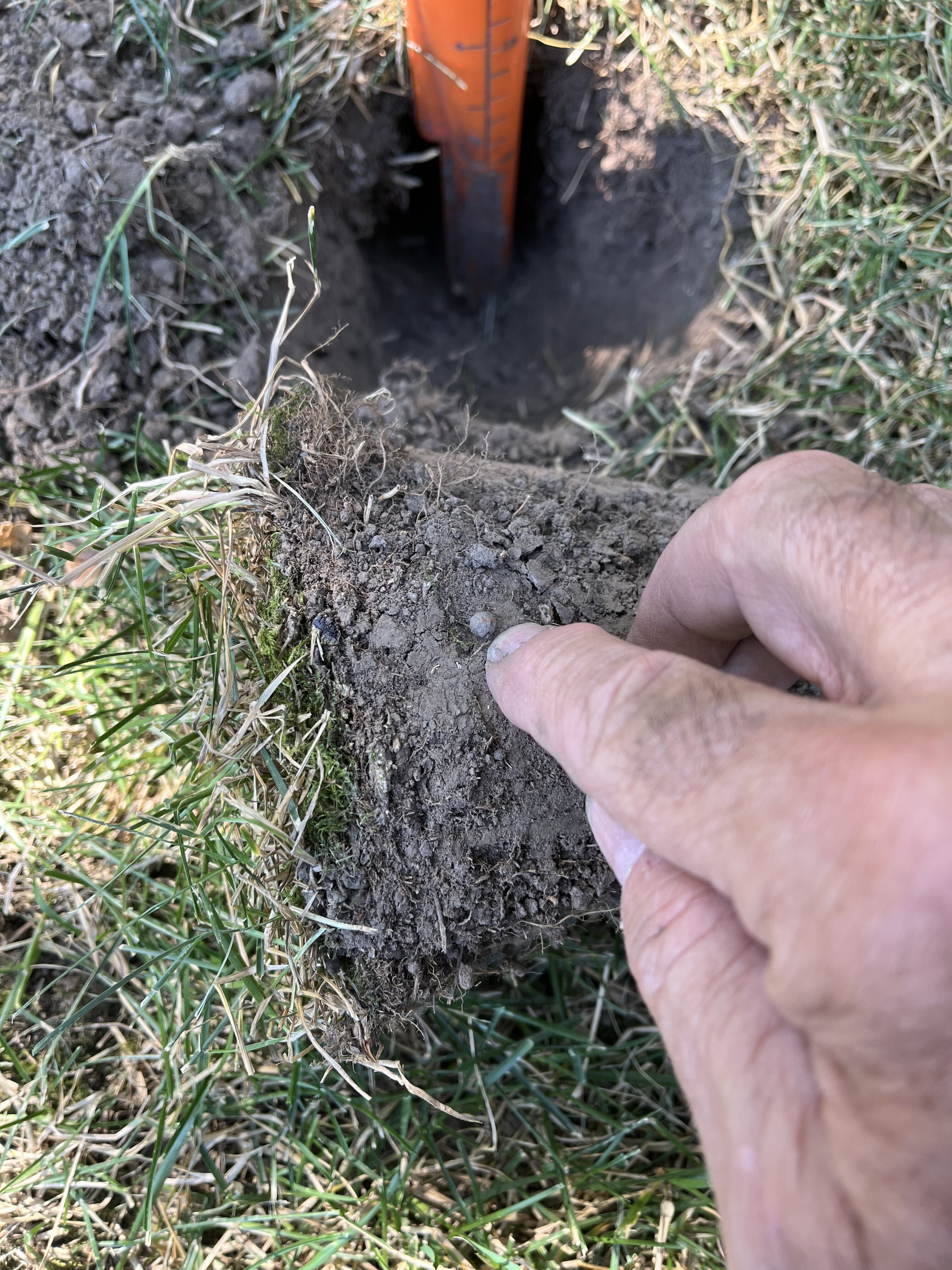

6” down the carrot started vibrating but I couldn’t find any cause so started scooping small palm fulls of dirt out until the hole was quiet. Carrot was locked onto something in the last pile but I could not find it to save my soul (easy Ma Betty….). Finally pulled out a small round object that when removed made the pile quiet. Its about the size of a BB or maybe a heavier shot pellet from a shotgun, but when I scratch it it has an iron orange color plus its kinda heavy for its size.
Moral of the story here is after turning up the gain just a couple notches I could hear other 19 hits that I missed when AG was on default. I wonder what that Seated Liberty dime at 10-11” would have sounded like???


Attachments

  • FA820479-9C10-4385-B1BC-C8613C44129B.jpeg
    3.4 MB · Views: 34
  • 030FB207-811C-4AD6-9FA5-A6E103405433.jpeg
    2.2 MB · Views: 38

Elmy

Well-known member
Just kind of an interesting moment. I sat out in my side yard and decided to go back into all the settings etc. Set the audio gain up from default and went to look for anything “iffy” of “faint”. Got a two way 19 VDI and deep but no ferro reading, this works!!!
6” down the carrot started vibrating but I couldn’t find any cause so started scooping small palm fulls of dirt out until the hole was quiet. Carrot was locked onto something in the last pile but I could not find it to save my soul (easy Ma Betty….). Finally pulled out a small round object that when removed made the pile quiet. Its about the size of a BB or maybe a heavier shot pellet from a shotgun, but when I scratch it it has an iron orange color plus its kinda heavy for its size.
Moral of the story here is after turning up the gain just a couple notches I could hear other 19 hits that I missed when AG was on default. I wonder what that Seated Liberty dime at 10-11” would have sounded like???
My audio volume limit on my etrac is on max at all times to hear a deep coin just as loud as a coin on the surface.
I figure that getting yelled at by the etrac is going to get more attention than just getting whispered at.

Last edited:

tometusns

Active member
Just kind of an interesting moment. I sat out in my side yard and decided to go back into all the settings etc. Set the audio gain up from default and went to look for anything “iffy” of “faint”. Got a two way 19 VDI and deep but no ferro reading, this works!!!
6” down the carrot started vibrating but I couldn’t find any cause so started scooping small palm fulls of dirt out until the hole was quiet. Carrot was locked onto something in the last pile but I could not find it to save my soul (easy Ma Betty….). Finally pulled out a small round object that when removed made the pile quiet. Its about the size of a BB or maybe a heavier shot pellet from a shotgun, but when I scratch it it has an iron orange color plus its kinda heavy for its size.
Moral of the story here is after turning up the gain just a couple notches I could hear other 19 hits that I missed when AG was on default. I wonder what that Seated Liberty dime at 10-11” would have sounded like???
I reckon I’ll turn mine up a bit. I’m always listening for those faint signals so a couple notches might just help out some. Thanks!


JimmyCT

Well-known member
Just kind of an interesting moment. I sat out in my side yard and decided to go back into all the settings etc. Set the audio gain up from default and went to look for anything “iffy” of “faint”. Got a two way 19 VDI and deep but no ferro reading, this works!!!
6” down the carrot started vibrating but I couldn’t find any cause so started scooping small palm fulls of dirt out until the hole was quiet. Carrot was locked onto something in the last pile but I could not find it to save my soul (easy Ma Betty….). Finally pulled out a small round object that when removed made the pile quiet. Its about the size of a BB or maybe a heavier shot pellet from a shotgun, but when I scratch it it has an iron orange color plus its kinda heavy for its size.
Moral of the story here is after turning up the gain just a couple notches I could hear other 19 hits that I missed when AG was on default. I wonder what that Seated Liberty dime at 10-11” would have sounded like???
My unsolicited advice? I’d crank that gain to max and purchase a pair of headphones like the Sunray pro golds. On these headphones is a blast limiter switch that will “deaden” the shallower targets and will allow you to enhance the audio on deeper targets. There are also two separate volume controls for each ear to adjust to a comfortable level.


sprchng

Well-known member
My unsolicited advice? I’d crank that gain to max and purchase a pair of headphones like the Sunray pro golds. On these headphones is a blast limiter switch that will “deaden” the shallower targets and will allow you to enhance the audio on deeper targets. There are also two separate volume controls for each ear to adjust to a comfortable level.
That was game plan from the start and then I discovered the adapter NM supplies to run normal headphones will not work with headsets like my SunRay Pros , White's Pro Stars or Grey Ghosts. I haven't heard back from Dilek on that issue


pulltaboo

Well-known member
You need to remember that literally every indicator (audio volume, VDI, depth etc) is only working as intended on coin sized targets. If your target is massive or tiny, the readings will be way off, including the audio volume. A tiny earring on the surface will sound faint and "deep", while a piece of an aluminum pipe 10" deep will blow your eardrums with a solid "surface" signal. There are many techniques to figure out the real size and depth of a target, and audio volume is not one of them.

With that in mind, AG gives you audible depth perception. If your hunting ground contains both modern trash and a deep layer of old stuff, you can set up AG low and only dig faint ("deep") signals. Same with tot lots (which only contain very shallow items of interest), but on tot lots you dig shallow signals. In all other cases, I like running my AG high, sometimes at the max, especially if I'm also running the recovery speed high.


Odanscoils

Well-known member
Just kind of an interesting moment. I sat out in my side yard and decided to go back into all the settings etc. Set the audio gain up from default and went to look for anything “iffy” of “faint”. Got a two way 19 VDI and deep but no ferro reading, this works!!!
6” down the carrot started vibrating but I couldn’t find any cause so started scooping small palm fulls of dirt out until the hole was quiet. Carrot was locked onto something in the last pile but I could not find it to save my soul (easy Ma Betty….). Finally pulled out a small round object that when removed made the pile quiet. Its about the size of a BB or maybe a heavier shot pellet from a shotgun, but when I scratch it it has an iron orange color plus its kinda heavy for its size.
Moral of the story here is after turning up the gain just a couple notches I could hear other 19 hits that I missed when AG was on default. I wonder what that Seated Liberty dime at 10-11” would have sounded like???
Wonder if that's an old copper platted steel BB.

On the other hand a fad back in the 80'$
Was a nice solid gold chain with gold or platinum beads. From 1/8th inch to 3/8th inch.
18K.
Wife wanted those just couldn't afford them.
I'm sure someone's lost a few. Never found any.
Though I wonder where they'd come in at ?
Low next to iron ?


Ronstar

Well-known member
AG is a somewhat new concept for me to learn. Now that I’ve got the Legend somewhat under control I’m now letting it off the leash.
As I learn thoughts and opinions here I can tailor it to my conditions as learned. I’m just a bit taken back how that detector zeroed in on a tiny orb at 6”.

It registered 19 VDI on the Legend which is foil into aluminum numbers but playing with it last night I’m sure its iron. There are a few more 19 hits surrounding its location so I expect there are more. What it is I have no idea, iron buckshot is a starter but this homestead was 1870s to begin so that makes no sense. Sometype of a tumbling media??? Ball bearings??
Now we get to go back to the campus and start all over again. With the good luck I’ve had this last couple months maybe some rich east coast kid dropped a Colonial here back when school started in the 1880s, I found the orb so why not?? Lol


JCR TX

Well-known member
That was game plan from the start and then I discovered the adapter NM supplies to run normal headphones will not work with headsets like my SunRay Pros , White's Pro Stars or Grey Ghosts. I haven't heard back from Dilek on that issue
I have the NM adapter for my Legend( and Anfibio also). I can use my Killer B headphones & they work fine if you set the mode switch(stereo/mono) correctly on the HPs. The Sun Rays have the same switch to make them compatible with most any detector.


Odanscoils

Well-known member
AG is a somewhat new concept for me to learn. Now that I’ve got the Legend somewhat under control I’m now letting it off the leash.
As I learn thoughts and opinions here I can tailor it to my conditions as learned. I’m just a bit taken back how that detector zeroed in on a tiny orb at 6”.

It registered 19 VDI on the Legend which is foil into aluminum numbers but playing with it last night I’m sure its iron. There are a few more 19 hits surrounding its location so I expect there are more. What it is I have no idea, iron buckshot is a starter but this homestead was 1870s to begin so that makes no sense. Sometype of a tumbling media??? Ball bearings??
Now we get to go back to the campus and start all over again. With the good luck I’ve had this last couple months maybe some rich east coast kid dropped a Colonial here back when school started in the 1880s, I found the orb so why not?? Lol
Their were a lot of Red Rider BB guns since 1940.
No matter what age the property.
Kids played everywhere.
Spilled a lot of BB's loading up. .177 caliber.
That definitely looks the right size.


sprchng

Well-known member
I have the NM adapter for my Legend( and Anfibio also). I can use my Killer B headphones & they work fine if you set the mode switch(stereo/mono) correctly on the HPs. The Sun Rays have the same switch to make them compatible with most any detector.
Very interesting. None of the four headsets that I have that are stereo will work with the NM adapter I have regardless of the switch position. I have not heard back from Dilek when i emailed NM other than that she said she would consult their engineer. Headsets with a 1/8 plug do work with a 1/4 adapter in the NM dongle. I can get them to work if I find that partially inserted magic spot while wearing the headset to hear the signal but there is no signal before or beyond that spot and certainly not "locked in". Now I am beginning to wonder if there is something wrong with the NM adapter/dongle i have


Odanscoils

Well-known member
Very interesting. None of the four headsets that I have that are stereo will work with the NM adapter I have regardless of the switch position. I have not heard back from Dilek when i emailed NM other than that she said she would consult their engineer. Headsets with a 1/8 plug do work with a 1/4 adapter in the NM dongle. I can get them to work if I find that partially inserted magic spot while wearing the headset to hear the signal but there is no signal before or beyond that spot and certainly not "locked in". Now I am beginning to wonder if there is something wrong with the NM adapter/dongle i have
Running the NM headphone adapter on my Simplex
The Superbee Killer Bees run just fine.


synthnut

Well-known member
It sounds to me like what is needed is a schematic of the headphone dongle to actually see what wires are connected inside said dongle….This would allow us to make whatever adapter is needed for each of our individual phones…..I went through the same thing with Minelab detectors when ripping them apart and modifying them for my needs….when partially sliding the plug in,you are only allowing certain parts of the plug to connect and those connections might be all that your phones need to operate….If you have a schematic that told you what was what,you could make a better adapter for your phones


Hank68

Well-known member
Running the NM headphone adapter on my Simplex
The Superbee Killer Bees run just fine.
The killer bees are awesome. I have the white pro headset , they're ok but KB's and Grey ghost are the best, I don't have the legend yet, but I will later, tell ya the truth I'm tired of seeing nox videos on utube, not knocking the nox's lol glad the legend it meeting your expectations, continued success, HHHANK


william T

New member
Yes, if we could just get the pinout for the legend headphone plug,
we could make other headphones work or just try them out to see if they will work.


Sven

Well-known member

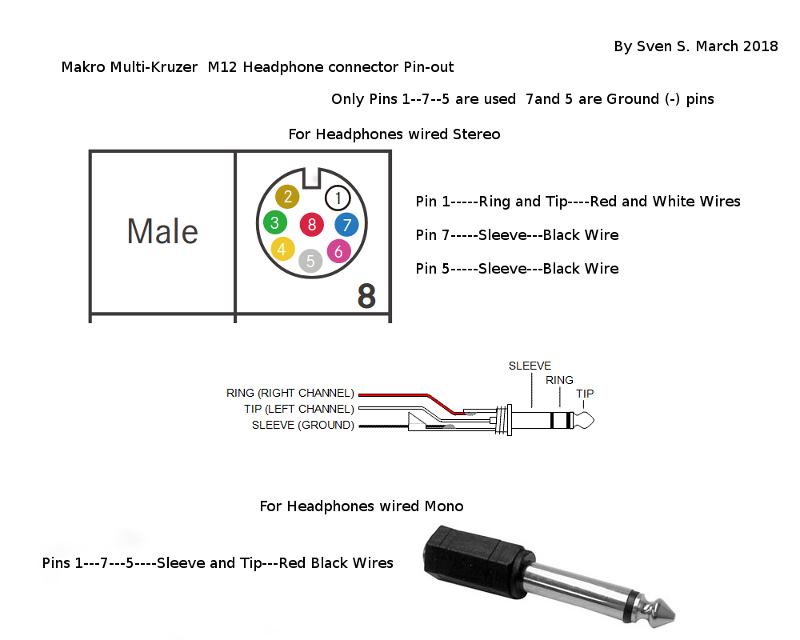

Same pinout for all Noktas Kruzer, Anfibio, Simplex, Legend.
Found wired headsets work much better audio wise and you will hear the Legend threshold at the lowest setting.


Attachments

  • MK M12 Pinout.jpg
    MK M12 Pinout.jpg
    111.3 KB · Views: 49

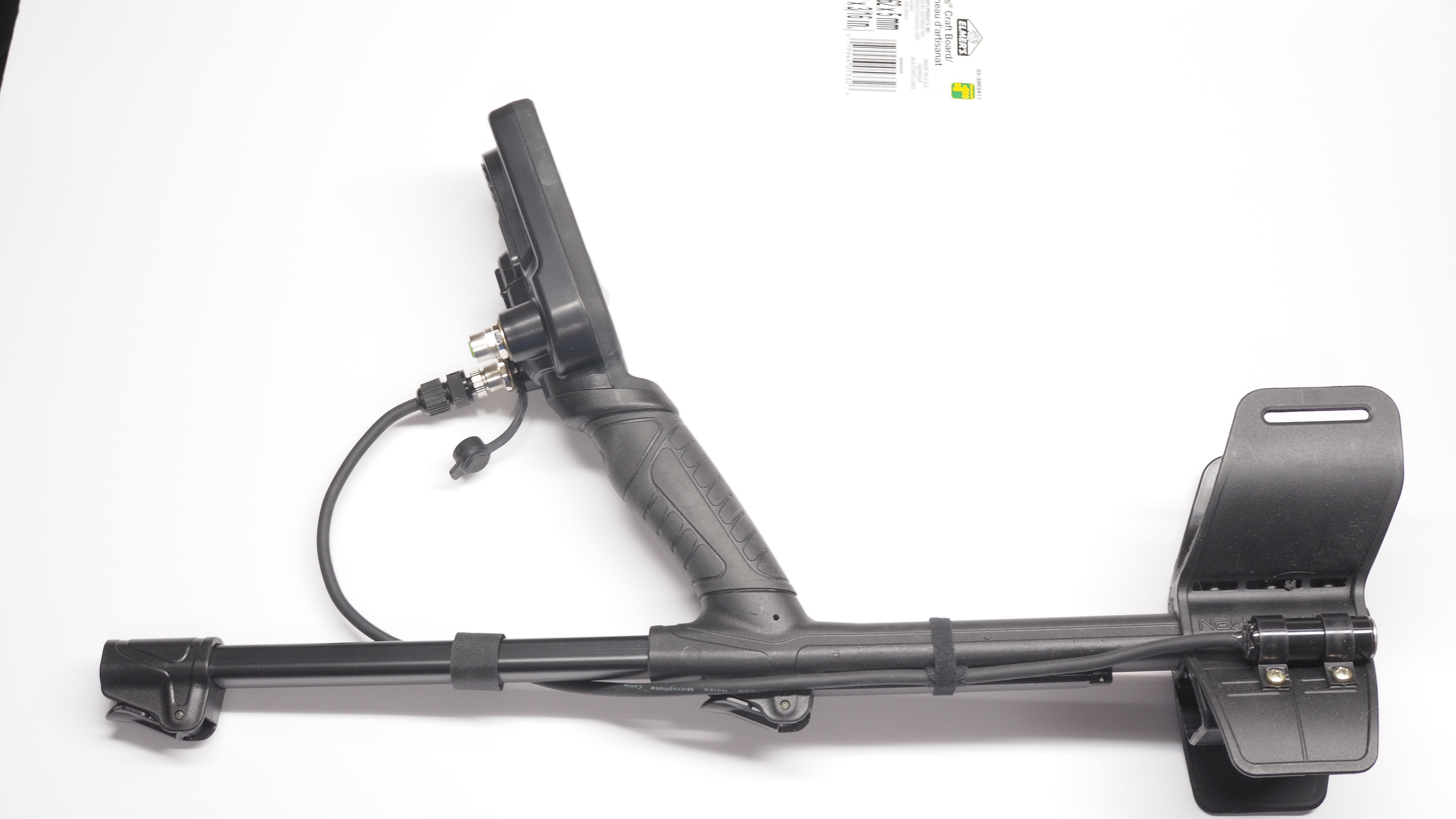

  • P3104506.JPG
    2.8 MB · Views: 44

sprchng

Well-known member
Same pinout for all Noktas Kruzer, Anfibio, Simplex, Legend.
Found wired headsets work much better audio wise and you will hear the Legend threshold at the lowest setting.
Where did you get one that long? The one I have barely makes it back to the handle

,,nevermind , I tracked it down:)

Last edited:

JCR TX

Well-known member
I would like to know where to get one that long. The OEM one I have is much shorter.


sprchng

Well-known member
A quick follow up on the dongle/adapter thing. Richard @ Backwoods did his usual "beyond the call" service thing and sent me another dongle. This one runs all the stereo headsets like it's supposed to do so there is something fishy with the first one. Kudos to Richard for jumping on the problem no questions asked.(y)
(y)
