Excalibur coils mod with Bulgin Buccaneer 400 micro connectors

[timmysys]

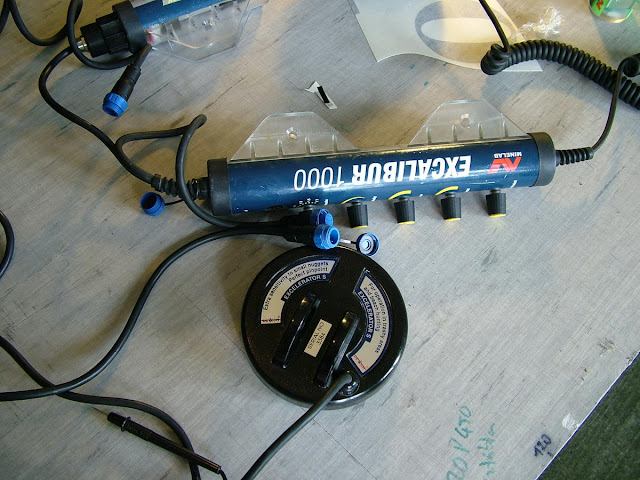

Excalibur coils mod with Bulgin Buccaneer 400 micro connectors.
Thanks for the ideas of the forum members. OldBeechnut has a particular thank you to the parts list.

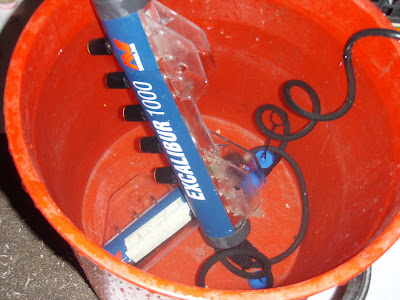

The connectors are works well, Excelerator unfortunately infiltrated by water on the first waterhunt.
The WOT has helped me find the first wedding rings.



[otlew]

Nice job, and I agree that OldBeechNut is a particularly helpful fellow. I do have question. Did you buy the contact insertion tool for the connectors or was not needed?



[timmysys]

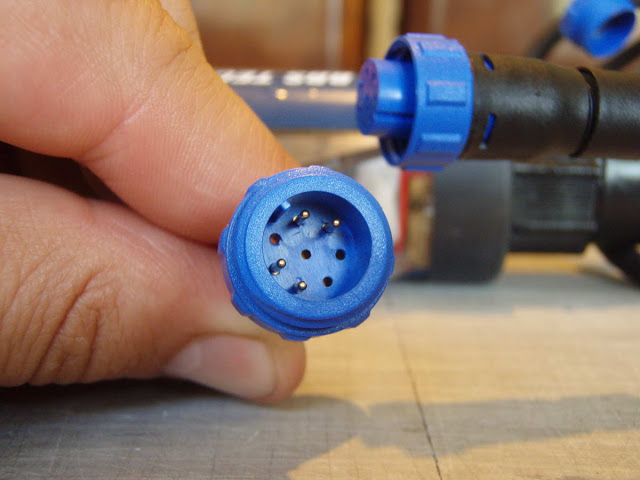

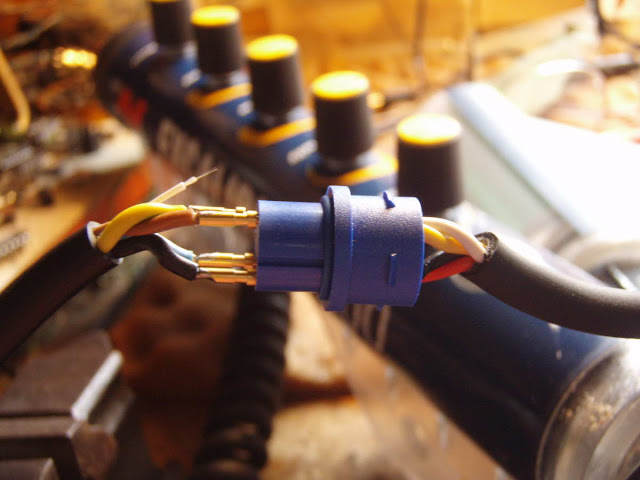

The pins are soldered, my friend who pro did it.
Not need a special pilers.



[OldBeechnut]

Very well done tim, great pic's again

Yes he is a Pro, now I have to go back and resolder mine!!......Another step ahead of the guys on the beach, being able to change out the coils....can't wait to see your remote Pp mode pic's this fall.....

Thanks you guys...I'm still learning from you guys also, and the one's that have posted from the past. one of the best things about the findmall crew..other forums just don't seem to be as Adventurious



[timmysys]

One important thing!

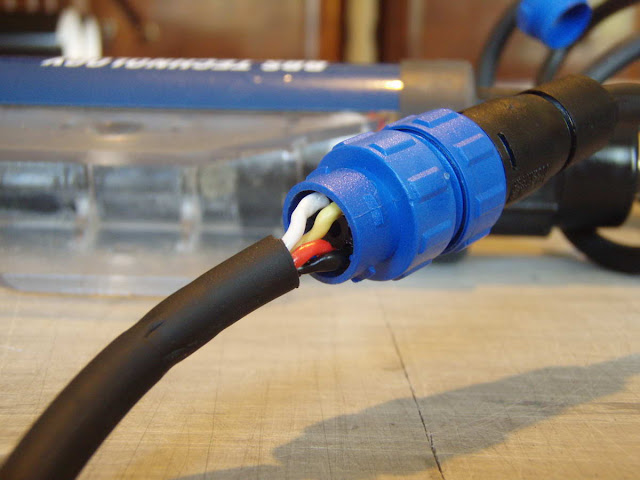

The Coiltek WOT cable's plastic casing is too thick. Does not fit into the connetor. Can be sanded thinner.



[timmysys]

This is not advertising, just the parts are found on this website. I bought
here the part list:

----------------------
Excal side

Bulgin Components, PLC PX0410/08S/6065
http://www.alliedelec.com/search/productdetail.aspx?SKU=5650023
(you will use 4 pin of 8, this connector need this fit into a thick cable)

pins
Bulgin Components, PLC SA3347/1
http://www.alliedelec.com/search/productdetail.aspx?SKU=5650059

End cap
Bulgin Components, PLC PX0481
http://www.alliedelec.com/search/productdetail.aspx?SKU=5650061

------------------

Coil side:

Bulgin Components, PLC PX0410/08P/6065
http://www.alliedelec.com/search/productdetail.aspx?SKU=5650016

pins
Bulgin Components, PLC SA3348/1
http://www.alliedelec.com/search/productdetail.aspx?SKU=5650060

end cap
Bulgin Components, PLC PX0480
http://www.alliedelec.com/search/productdetail.aspx?SKU=5650063

-----



[otlew]

I assume you mean the water entered at the coil not the coil connector. Is that correct?

Excelerator unfortunately infiltrated by water on the first waterhunt.



[timmysys]

Yes, the 5" coil gone mad. :/



[otlew]

For those who may not know this;

If you measure the cable diameter you may find that you can purchase the proper collet and cable gland to fit it. As you may know the last four digits signify the cable entry size. A /6065 is color coded white and is for 6.0 to 6.5 mm. The largest collet and cable gland combination is the /6570 and fits 6.5 to 7.0 mm and is black in color.

Part number PX0482 a package of 4 pairs of collets and glands ranging in size from 3.0 to 5.0 mm

AND

Part number PX0483, a package of 4 pairs of collets and glands ranging in size from 5.0 to 7.0 mm

Bulgin Cable Gland/Collet pack

One important thing!

The Coiltek WOT cable's plastic casing is too thick. Does not fit into the connetor. Can be sanded thinner.
