Need help finding a coil brake to stop flopping.

Dancer

Well-known member
Hope someone can steer me on finding one of these. A tool to halt coil flop, especially while wading. I got a buddy has one on his Beach Hunter. Used to see them advertised but can't find one now. So pictured is a crude one I made from a plastic coffee can lid. And its doing ok . Thanks for any help.


Attachments

  • 20220214_074037.jpg
    1.2 MB · Views: 103

fwcrawford

Well-known member
The ones I have seen are kind of genetic/universal fit.
I actually made one for Sand Shark and Equinox out of the material that is used to make office names (a type of plastic).

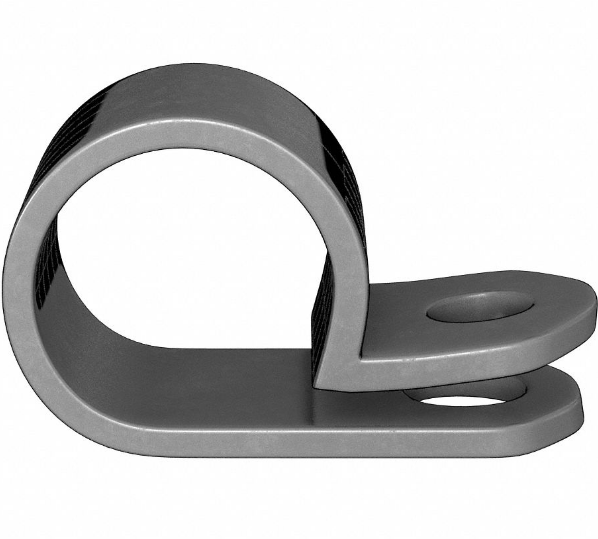

One connection point is the coil bolt and the other is a plastic pipe clamp around the shaft…. Fairly easy to make and works great.
Only thing to keep in mind is that while wading, if will cause drag so keep that in mind.


tvr

Well-known member
There were a lot of posts about making a brace. Unfortunately in what I find with searches, the pictures are not there with the old posts. Here is one of them:

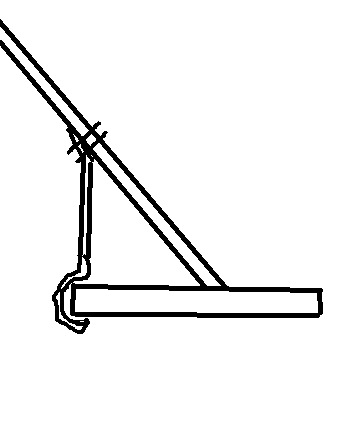

White's made a brace, but of course that is no longer available. I looked for an old catalog picture and did not find one. There were some posts where a strip of hard plastic was heated just enough to form it in a shape to hold the edge of the coil. I'll see if I can put together a little sketch. The lower bent part would catch the coil and the upper part would be tied with zip ties to the shaft. Something like this:


Last edited:

fwcrawford

Well-known member
There were a lot of posts about making a brace. Unfortunately in what I find with searches, the pictures are not there with the old posts. Here is one of them:

White's made a brace, but of course that is no longer available. I looked for an old catalog picture and did not find one. There were some posts where a strip of hard plastic was heated just enough to form it in a shape to hold the edge of the coil. I'll see if I can put together a little sketch. The lower bent part would catch the coil and the upper part would be tied with zip ties to the shaft. Something like this:

View attachment 23363
I have seen that design too…there would be very little drag in the water too! 👍


Jed in NC

Active member

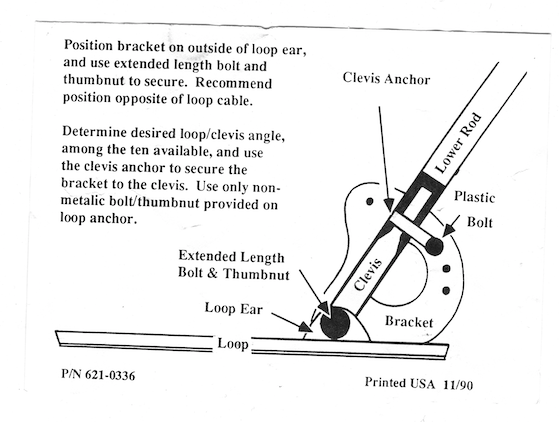

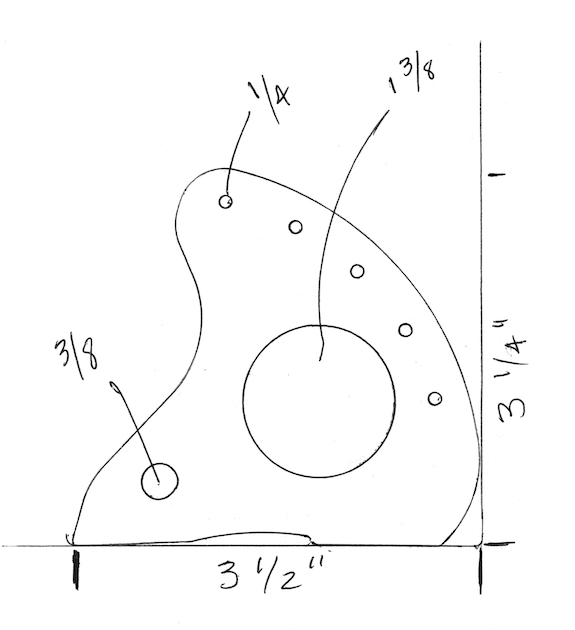

Here is a trace of the one I have. Can provide additional info if needed. Thickness about 1/8" or 4mm.


Screen Shot 2022-03-02 at 10.06.21 AM.png

Screen Shot 2022-03-02 at 10.08.54 AM.png

Last edited:

Jed in NC

Active member

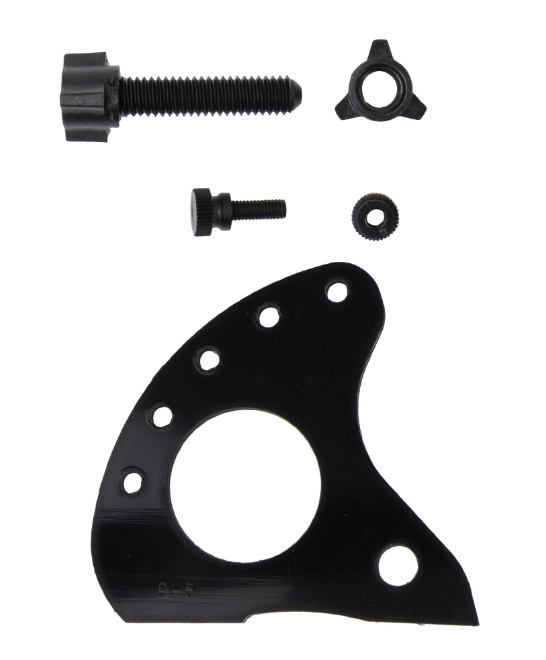

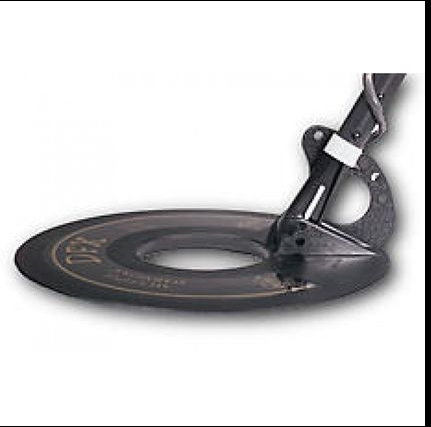

This is the one that can really do the job. Are they still being sold? I made one out of a plastic coffee can lid , use a zip tie on the top. I'm a lot better with it than without.
I,ve had mine for a while. Don't think they are still available.


Jed in NC

Active member
Dancer, Had a few minutes this afternoon and found a piece of plexiglass. Cut you out a bracket in the shop. PM me with an address and I'll drop it in the mail.
