Broken ears on stock coil

Grunter

Active member
On my last water hunt my coil ears snapped off on the coil,almost flush with the coil housing. Would the coil ear stiffeners that are being sold repair this by gluing it on the coil?


u2robert

Well-known member
No Warranty? I think Minelab should repair/ replace these coils the ears are a defective part and they know it warranty or not


Grunter

Active member
Maybe everyone thats had an issue with these coils should report them to the consumer protection agenct or fiule a class action.


dfmike

Well-known member
This issue is an ongoing thing with Minelab. Nobody should have to buy coil ear stiffeners. Happened to me with the X Terra. Now I'm always worried it's going to happen with my Equinox.


Mark kus

Well-known member

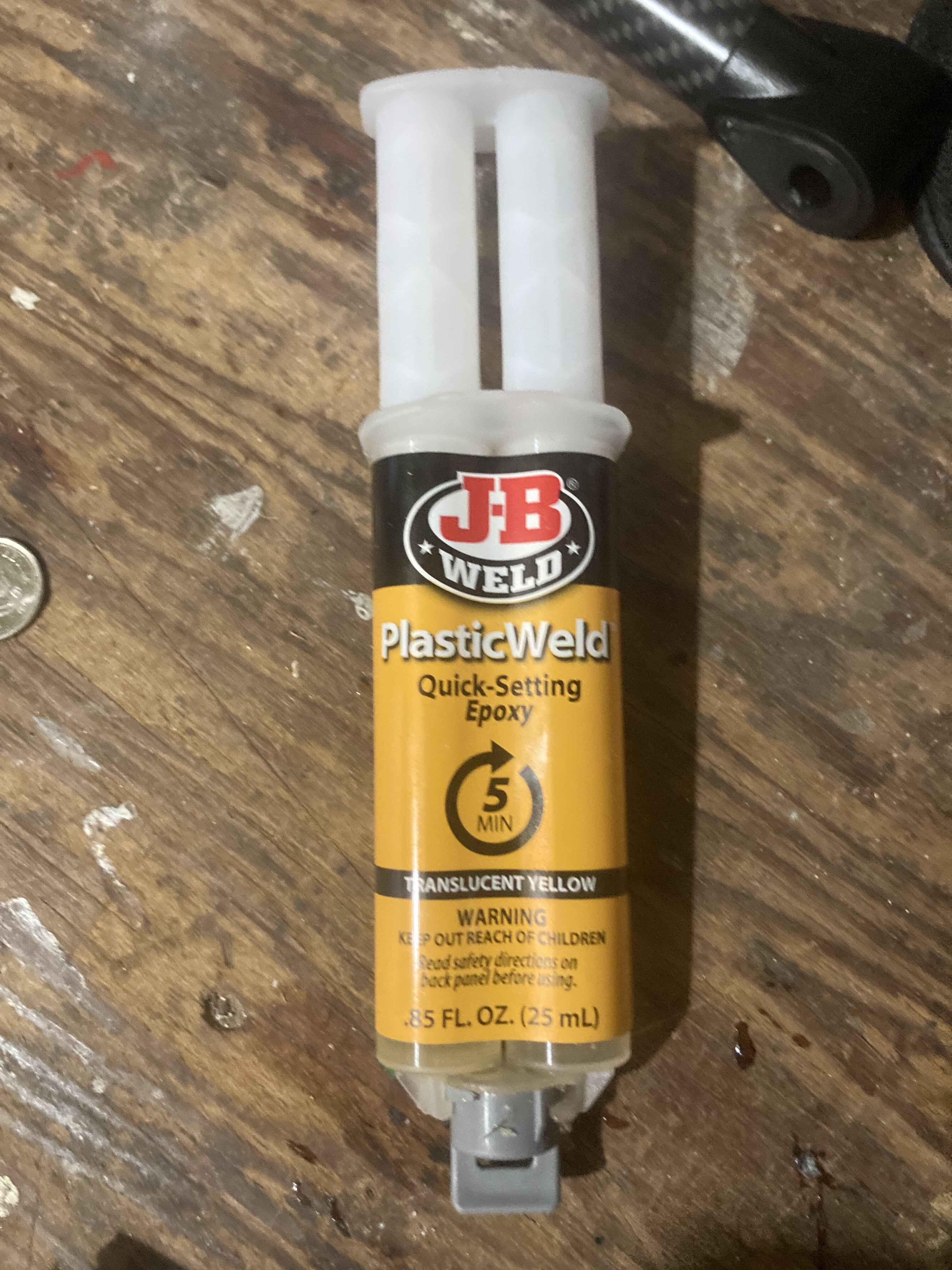

I had the same problem and I used JB weld plastic epoxy and used the broken tabs epoxied to the stiffener then epoxy it back to the coil working great !
The stiffener I used was on eBay it’s very beefed up and literally almost snaps in place .
Mark


Attachments

  • 1973391D-0C5A-4C8F-8E2E-612BC90D9D64.jpeg
    1.9 MB · Views: 167
  • 53C70AC1-9C0A-4BCB-B6D7-263F00FAC9FD.png
    3.5 MB · Views: 170
Last edited:

BobOso

Well-known member
This issue is an ongoing thing with Minelab. Nobody should have to buy coil ear stiffeners. Happened to me with the X Terra. Now I'm always worried it's going to happen with my Equinox.
Mark, thanks for the plug.

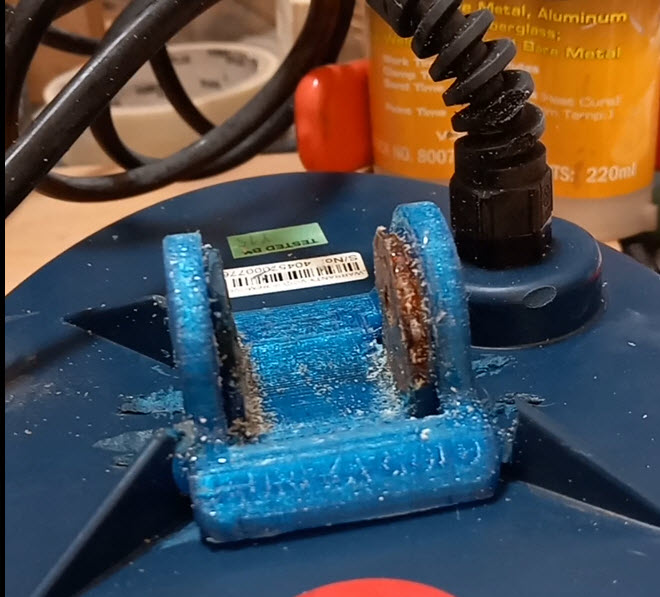

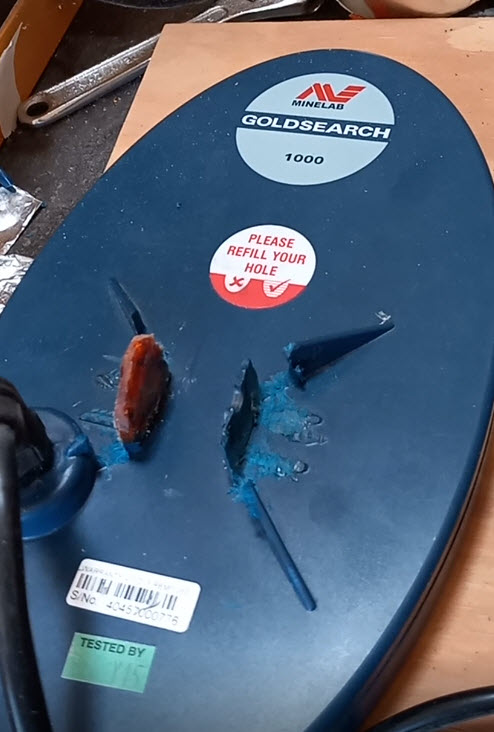

dfmike, if you trust me with your coil, I can make them for anything, below is the eureka gold, yes minelab has a problem. To get the most strength you first need to build up the broken ears, I did not have the correct plastic in my plastic welding kit, but it seems the cap to a ball point pen worked well, and a dremmel tool to keep the shape

Bob


Attachments

  • 11-22-2021 3-15-40 PM.jpg
    11-22-2021 3-15-40 PM.jpg
    78.2 KB · Views: 148
  • 12-1-2021 6-30-45 AM.jpg
    12-1-2021 6-30-45 AM.jpg
    59.2 KB · Views: 146

Mark kus

Well-known member
Mark, thanks for the plug.
dfmike, if you trust me with your coil, I can make them for anything, below is the eureka gold, yes minelab has a problem. To get the most strength you first need to build up the broken ears, I did not have the correct plastic in my plastic welding kit, but it seems the cap to a ball point pen worked well, and a dremmel tool to keep the shape

Bob
Thanks the method I used has worked flawlessly on two coils it’s really a easy fix.
The coil ears on the nox are of a horrible design I was careful for 3 years never broke one then one day I had my coil off to clean it and saw small hairline cracks from the bolt hole out so I knew it was only a matter of time until they broke so a easy fix it just to epoxy a stiffener on from new I would ..and the JB weld is incredible epoxy on plastic.
Mark


BobOso

Well-known member
I should also add that if you plan on buying the coilteck for the nox, it too is very flimsy, even more so than the stock coils. I sell those on fleebay as well.


silvercoinboy

Well-known member
send it back for warranty replacement. Already had 3 replaced


MetalHead47

New member
I had four coils break minelab knows but they don’t care that’s why I am switching simplex the legend I always had minelab s bu enough is enough


dfmike

Well-known member
Unfortunately it seems like the after market coil ear stiffener may be a worthwhile purchase.
But there are so many of these stiffeners online... Which ones actually work ? I'd hate to have the coil ears on my 6" DD Equinox coil break before one year of ownership.


dfmike

Well-known member
I should also add that if you plan on buying the coilteck for the nox, it too is very flimsy, even more so than the stock coils. I sell those on fleebay as well.
I'm surprised that Coiltek doesn't make them better. They should take example on some third party coil manufacturers. I have a few coils for my Fisher and Teknetics detectors that have a design that will never break unless I smash them against a tree with brute force !


Mark kus

Well-known member
But there are so many of these stiffeners online... Which ones actually work ? I'd hate to have the coil ears on my 6" DD Equinox coil break before one year of ownership.
Use the one I used he makes them both for 6” and 11” they are a perfect fit almost snap in and the ears are super wide beefed up.
Mark


dfmike

Well-known member
Use the one I used he makes them both for 6” and 11” they are a perfect fit almost snap in and the ears are super wide beefed up.
Mark
Mark, can you PM me so I know what seller you are referring to ? There are dozens online.


BW

Member
I bought the 11 in and the 15 in coil ear stifners from Big Boys hobbies. Service was excellent and the quality seemed to be excellent also.they look like they should do the job quite well. Time will tell.
